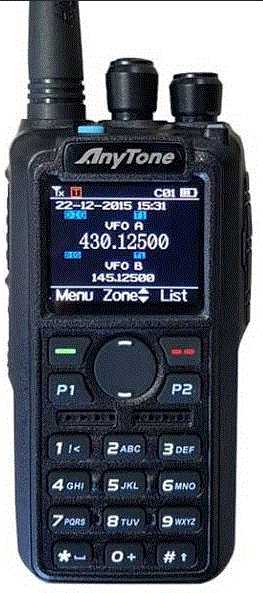

Anytone D878UV/D578UV downloads
Here you will find my Anytone D878UV/D578UV downloads.
Codeplugs
| Filename | Size |
|---|---|
 20240105 Anytone AT-DB878UV and AT-D578UV CSV files_2 |
1.9 MB |
 Optional settings - AT-D578UV |
2.18 KB |
|
Optional settings - AT-D878UV |
1.9 KB |
|
Readme.txt |
1.46 KB |
Note: you need to alter the DMR Radio ID plus Name and APRS callsign, they are set to invalid values. And if you get a Mode Error: my D878UV/D578UV are set to MODE:0000 (change by powering up while holding PTT and 1 on the D878UV and the Channel knob and P4 on the D578UV), so they accept all frequencies (even non-HAM ones).
I changed over from providing codeplug files to CSV files. The CSV files are mostly version and radio type independent and you import them in the CPS matching your radio. Only drawback is that you need to alter the Optional Settings by hand, but a file describing what to change into what is also provided. Please read the Readme file included!
My codeplug has
- some HAM Simplex frequencies, in one zone
- all Dutch DMR repeaters, each in its own zone.
- all Belgian Brandmeister DMR repeaters, each in its own zone.
- all German Brandmeister DMR repeaters, each in its own zone
- all Dutch 2m/70cm analog repeaters, in one zone
- all Belgian 2m/70cm repeaters, in one zone
- all German 2m/70cm repeaters, to add to own zone (they do not fit in one zone per Bundesland in most cases...
- two hotspot zones, one for a simplex hotspot and one for a duplex hotspot (you either set your hotspot to the frequencies in the codeplug or change all hotspot frequencies to your own hotspot frequency)
This will fill 2000+ channels and about 170 zones. As a bonus all European DMR contacts are also in the ZIP file, although in a separate folder. You need to import this manually.
All Dutch Brandmeister repeater zones have the same configuration:
1/91 - WordWide
1/92 - Europe
1/922 - Dutch speaking
1/204 - the Netherlands Global (mapped to Reflector 4500)
2/9 - Local traffic and Reflectors
2/2041 - NL Noord (mapped to Reflector 4501)
2/2042 - NL Midden (mapped to Reflector 4502)
2/2043 - NL Zuid (mapped to Reflector 4503)
2/2044 - NL Oost (mapped to Reflector 4504)
2/2045 - NL Tech
1/2049881 - DStar XRF088A
1/2049882 - DStar XRF088B
The Dutch Motorola repeater zones follow this configuration as close as possible, but may differ (a lot!).
Dutch Motorola DMR HAM repeaters have a * at the end of the callsign, so you know which repeaters are on which network, and are last in the zonelist.
All Belgian Brandmeister repeater zones have the same configuration:
2/91 - WordWide
2/92 - Europe
2/922 - Dutch speaking
2/9 - Local traffic and Reflectors
1/2061 - Belgium N, linked to D-STAR REF028A = Belgium Flemisch/Dutch (mapped to Reflector 4751)
1/2062 - Belgium S (mapped to Reflector 4752)
1/2063 - Belgium E (mapped to Reflector 4753)
2/2064 - België on-demand 1
2/2065 - België on-demand 2
2/2066 - België on-demand 3
2/2067 - België on-demand 4
2/2068 - België on-demand 5
2/2069 - België on-demand 6
All German Brandmeister repeater zones have the same configuration:
2/91 - WordWide
2/92 - Europe
2/910 - BM German speaking
2/920 - BM DACH
2/262 - Germany
2/9 - Local traffic and Reflectors
2/2620 - Sachsen-Anhalt/Mecklenburg-Vorpommern
2/2621 - Berlin/Brandenburg
2/2622 - Hamburg/Schleswig-Holstein
2/2623 - Niedersachsen/Bremen
2/2624 - Nordrhein-Westfalen
2/2625 - Rheinland-Pfalz/Saarland
2/2626 - Hessen
2/2627 - Baden-Württemberg
2/2628 - Bayern
2/2629 - Sachsen/Thüringen
Please mail me all errors you find, thanks!
Software
Manuals
| Filename | Size |
|---|---|
 AT-D868UV_D878UV-Personal SettingsPR |
173.92 KB |
|
AT-D868UV_D878UV_Programming_Guide_1.33 |
3.99 MB |
|
ATD878UV-UserManual |
828.09 KB |
|
AnyTone_AT-D868UV_AT-D878UV_V1 |
100.4 KB |
|
Anytone BT01 Brochure 220916-1 |
3.12 MB |
|
AnytoneDMR-D578UV-Buttons-PreferencesPR |
163.06 KB |
|
BT Module manual - AT-D878UV PLUS蓝牙说明AT_A1_190409 |
301.04 KB |
|
D578UV FCC Internal-Photos-4513250 |
4.35 MB |
|
D578UV FCC MPE-4513258 |
121.52 KB |
|
D578UV FCC Radio-Report-1-4513179 |
5.7 MB |
|
D578UV FCC Radio-Report-2-4513180 |
5.31 MB |
|
D578UV FCC Test-Report-4513256 |
3.65 MB |
|
D578UV FCC Test-Report-4513337 |
2.1 MB |
|
D578UV_Manual_de |
1.47 MB |
|
D578UV manual 190930-1 |
1.43 MB |
|
D578UV updated manualA2_191113 |
1.43 MB |
|
Digital APRS Settings D868 Anytone |
604.88 KB |
|
Fixing_the_Band_Error_Message |
346.36 KB |
|
Frequency-Band-4057941 |
167.22 KB |
|
Int-photos-4057948 |
1.81 MB |
|
Strange_or_odd_things_happening |
123.63 KB |
|
Test-report-4057939 |
2.41 MB |
|
test-report-4057888 |
1 MB |
Boot and background images
| Filename | Size |
|---|---|
 Anytone Brandmeister black boot image |
6.64 KB |
|
Anytone Brandmeister white boot image |
6.4 KB |
